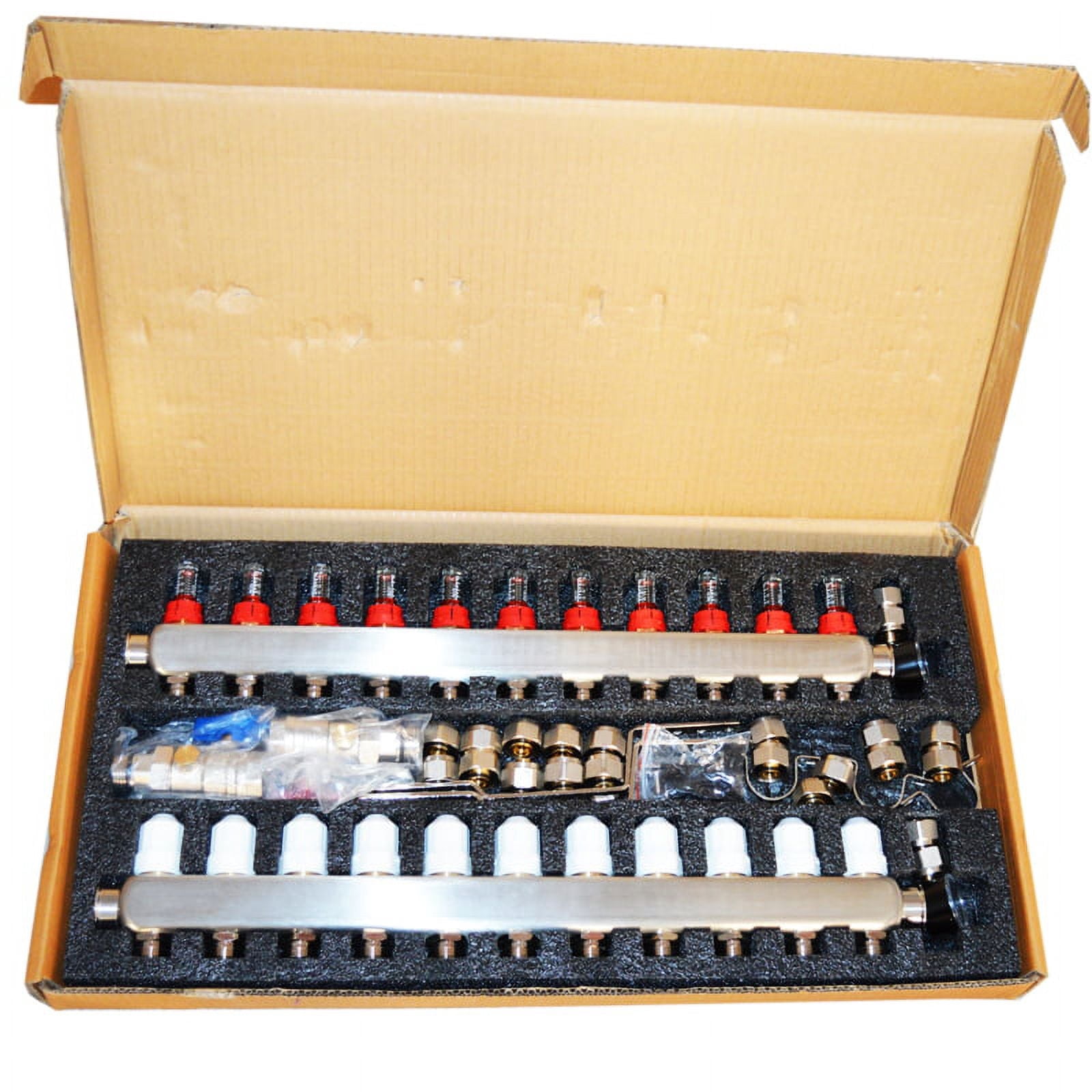

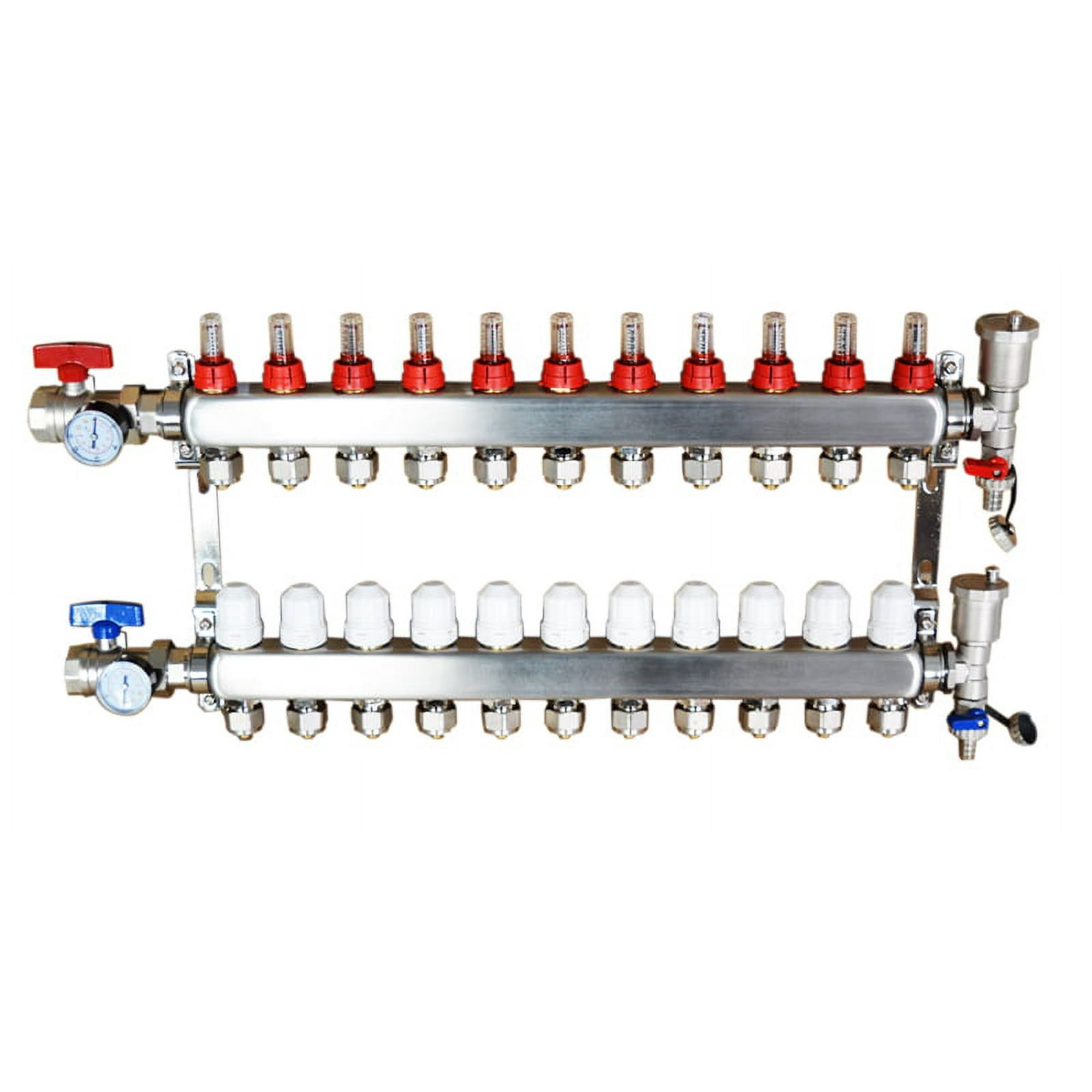

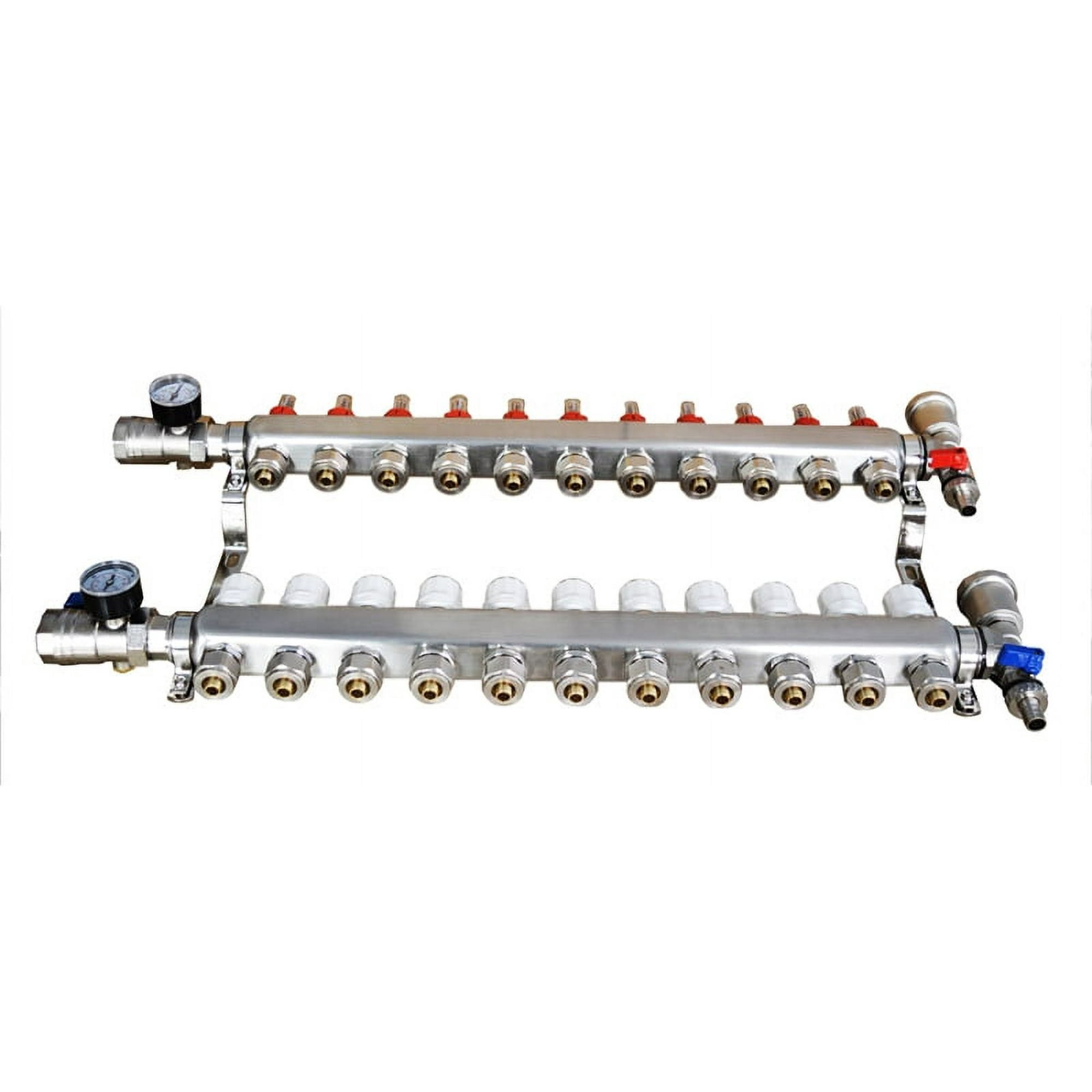

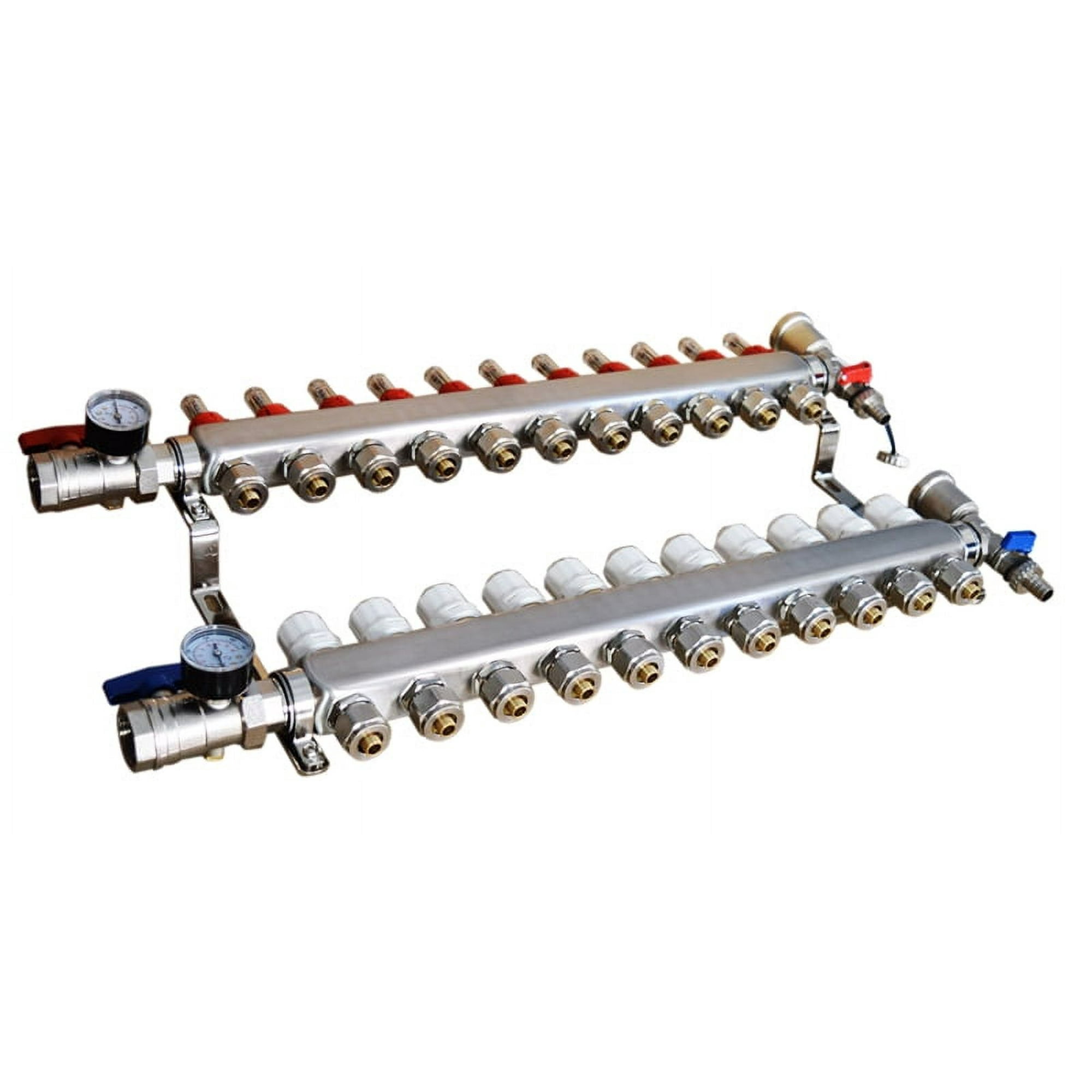

11-Branch PEX Radiant Floor Heating Manifold Set Geothermal Water Separator Stainless Steel

Specification: <br>Intelligent Flow 11-Branch PEX Radiant Floor Heating Manifold Set <br>Product Model: MXR/102A Flow temperature control type <br>Material: main 304 stainless steel (chromium &gt; 18% nickel &gt; 8%) copper: 59 brass <br>Main connection thread at both ends: G 1" pipe thread (inner thread) <br>Branch pipe adapter: G 1/2" <br>Spacing of branch pipes: 50mm <br>Applicable temperature: 1~95°C <br>Applicable pressure: 1.5MPa <br>Main Tube diameter: equivalent to DN40 diameter <br>Applicable medium: water vapor <br>Temperature control trip: 3mm <br>Other: Visual flow, Easy to adjust, Seamless steel pipe, Tube thickness of 1.6 mm <br> <br>Item Include:(053269) <br>1 set of 11-Branch PEX Radiant Floor Heating Manifold Set

• ‌The water flow of each branch can be adjusted individually, so that the water flow of each channel will be balanced, and no water grab phenomenon will occur, thereby reducing energy consumption and achieving the purpose of energy saving.
• Convenient for disassembly and assembly during cleaning. Two-way double seal to prevent water leakage.
• Equipped with automatic drainage valve, if there is more gas in the heating water pipe, using the automatic exhaust drainage valve can effectively exclude the body inside the pipe, increase the flow and improve the heating effect.
• The internal copper spring cut-off valve core is used, which can increase the life of the common valve core by more than 3 times. With the intelligent temperature control package, automatic temperature control can be realized.
• The main body is made of 304 stainless steel, which is sturdy and reliable. The tube body is demagnetized as a whole, does not absorb impurities, prevents internal clogging, and effectively extends the service life of the water separator (longer than the life of the non-demagnetized water separator).
