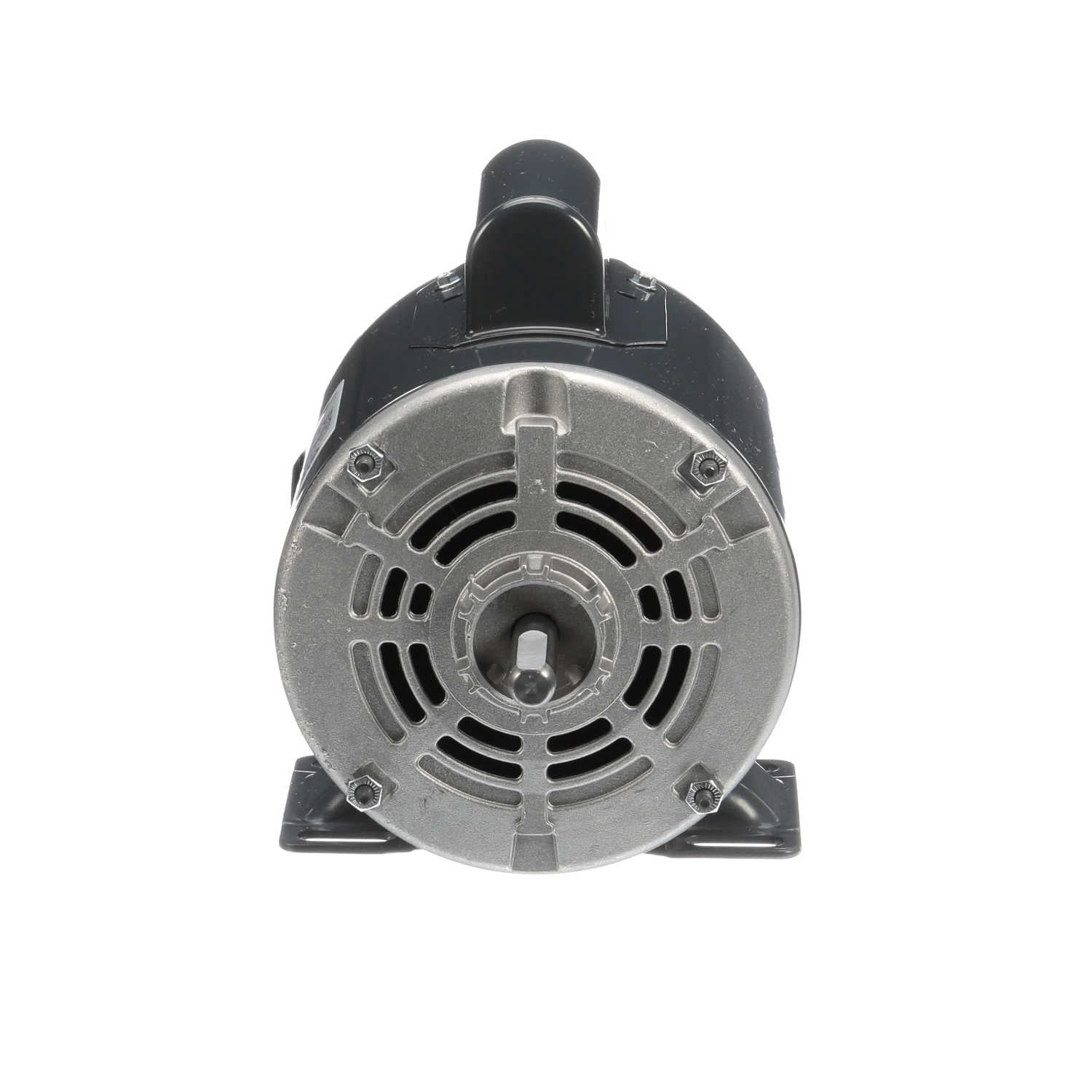

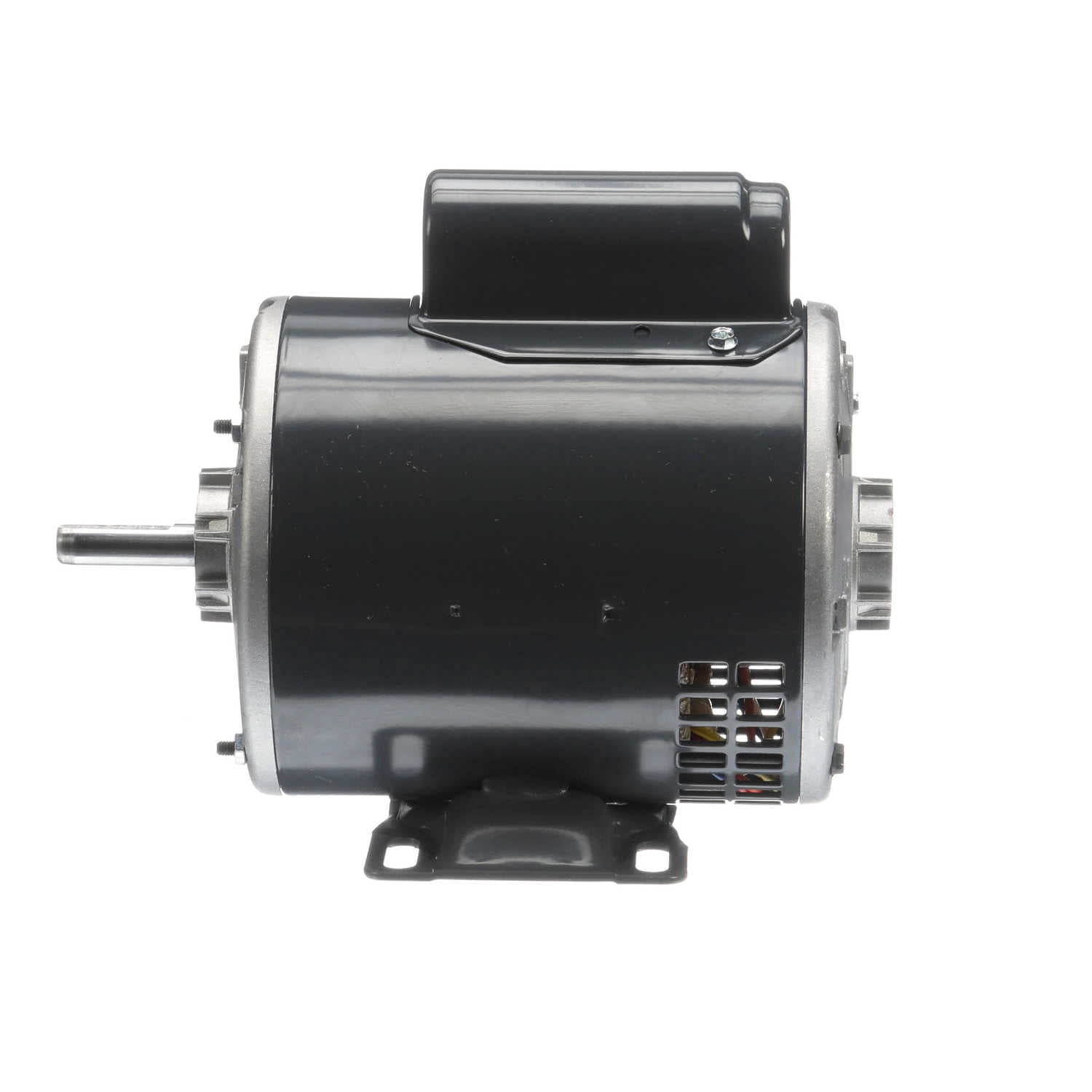

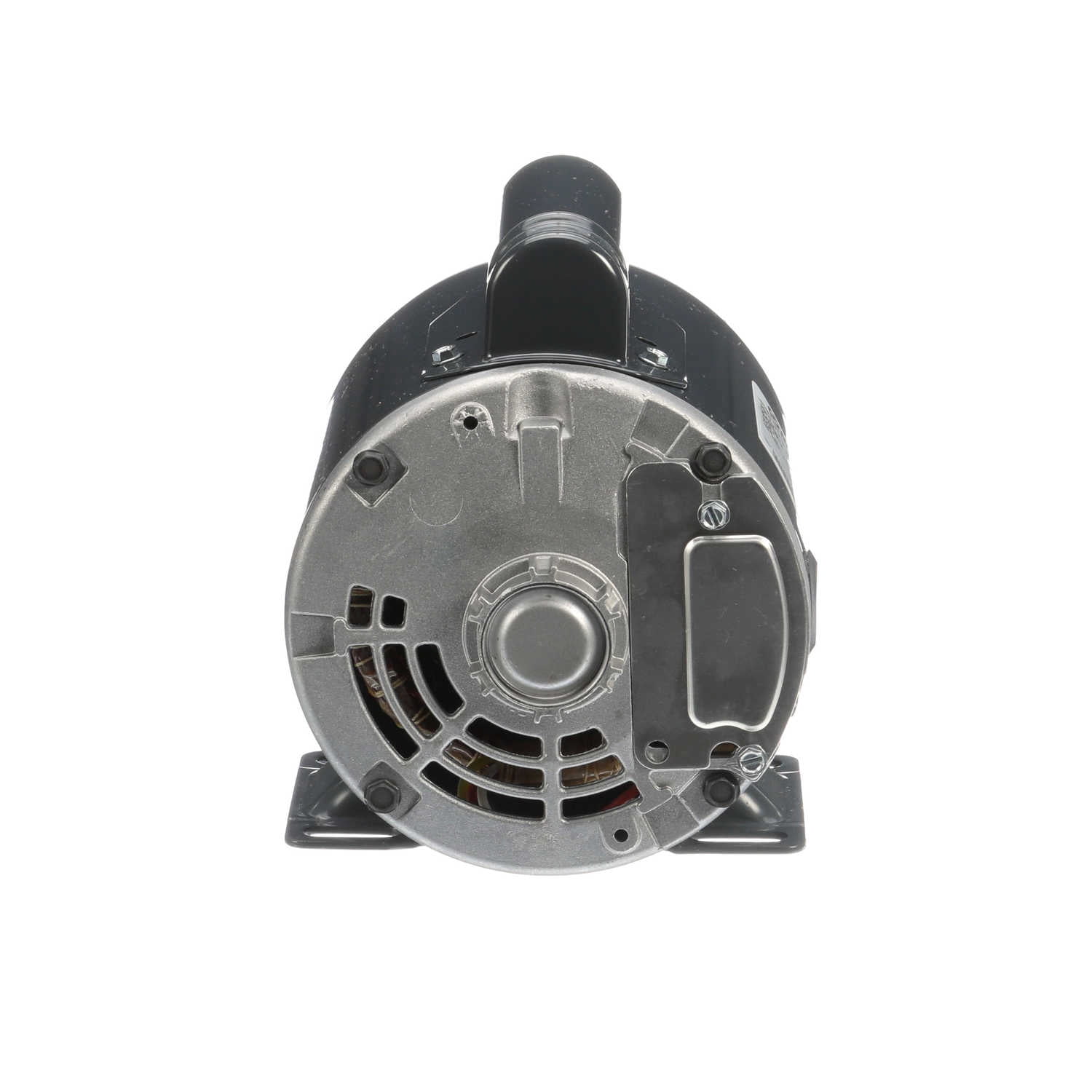

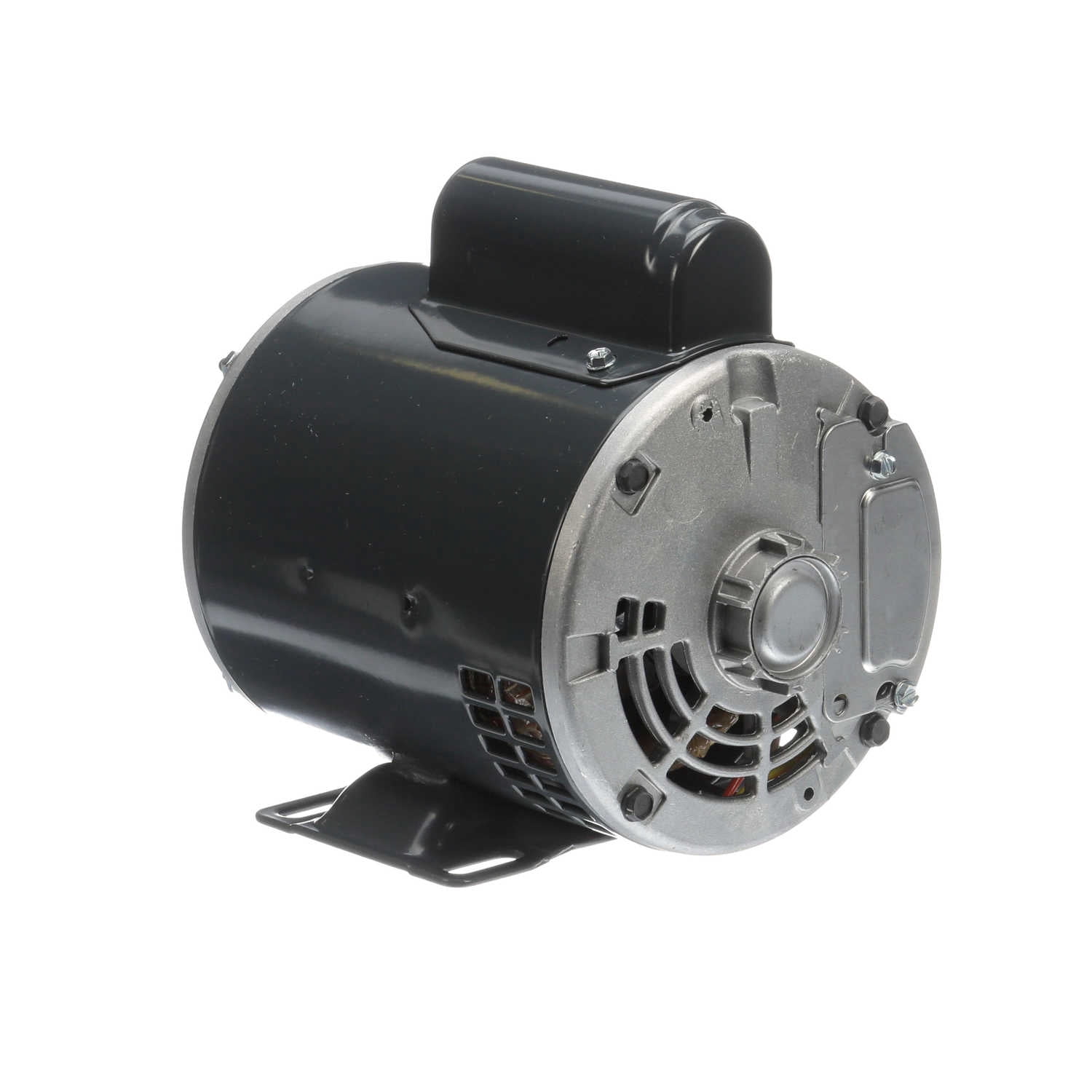

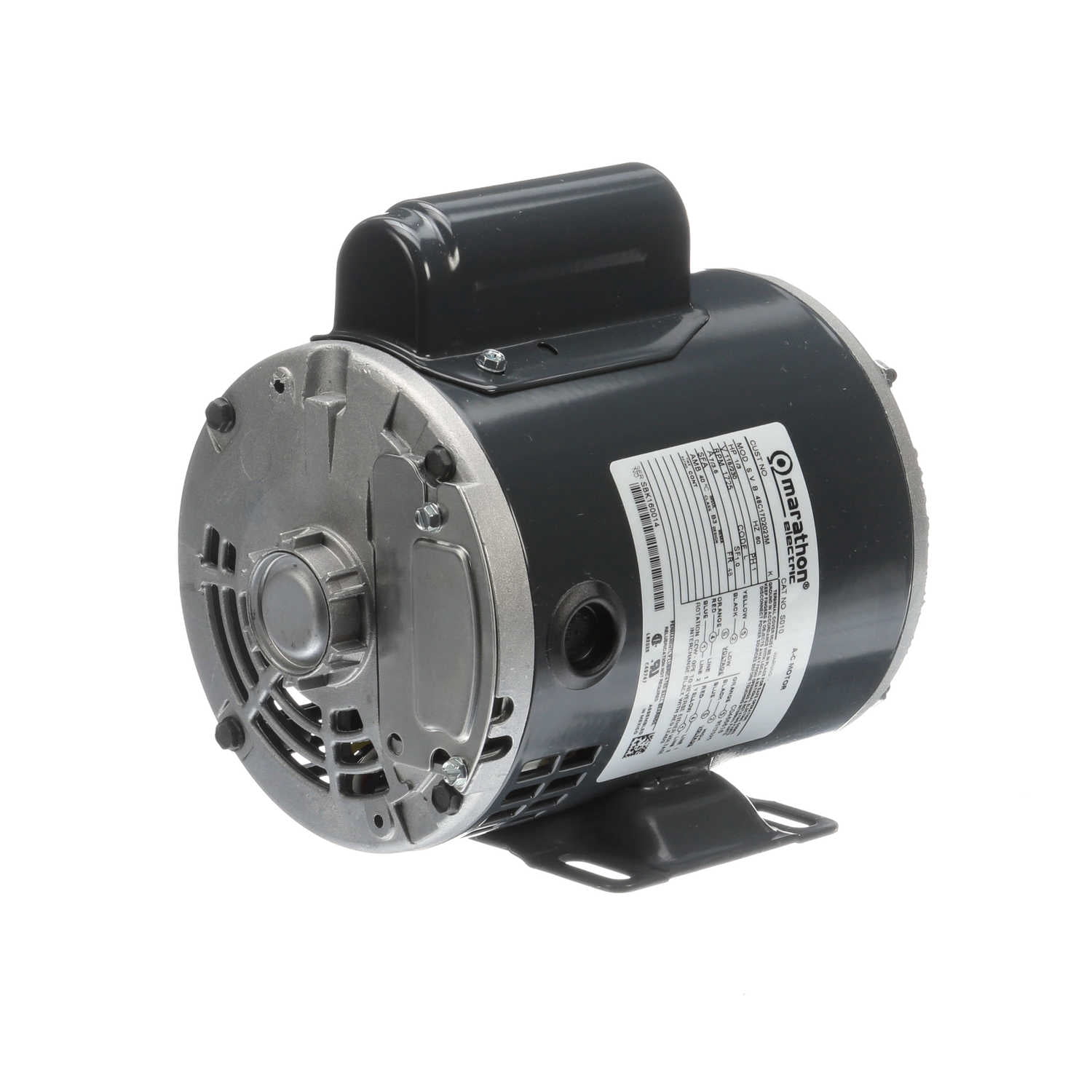

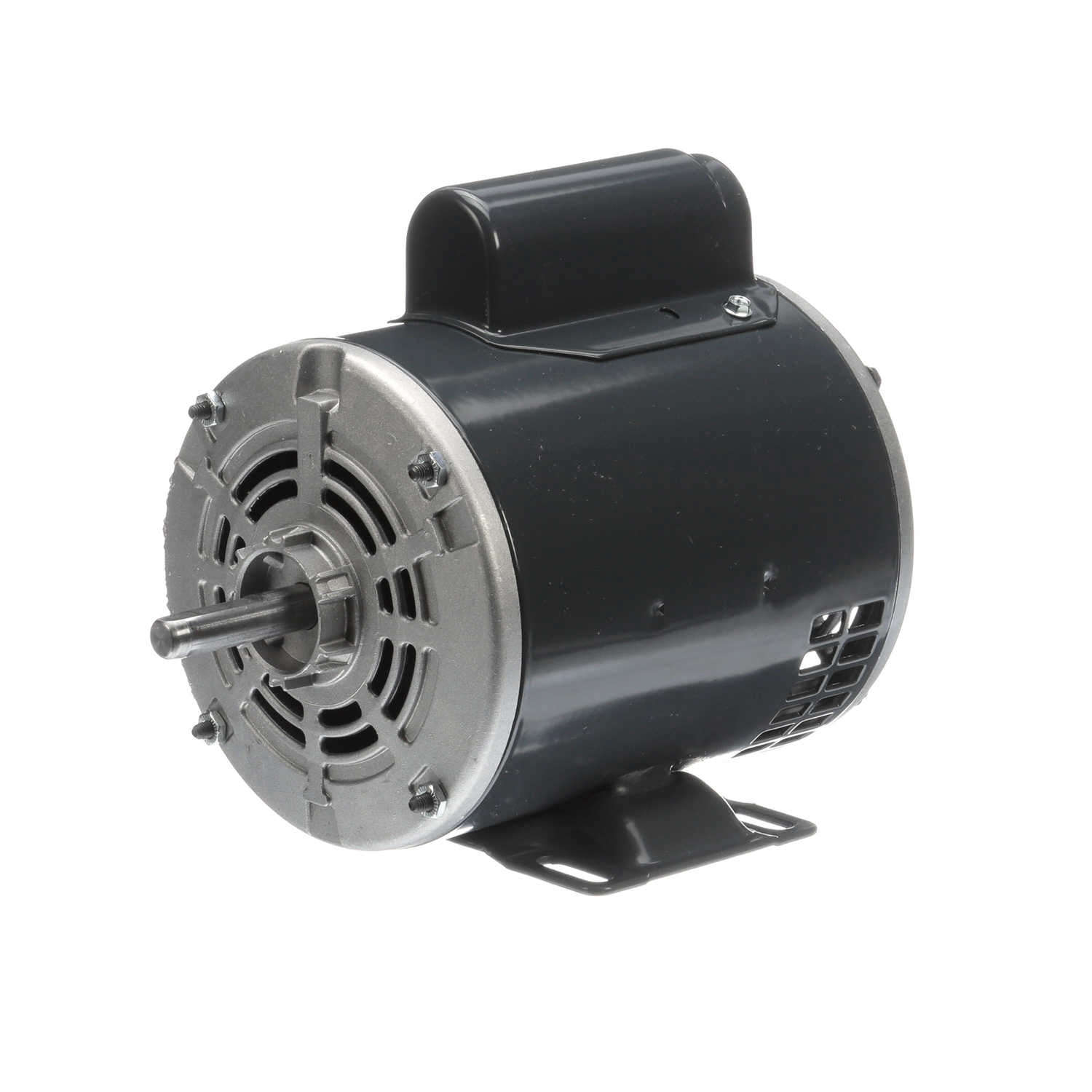

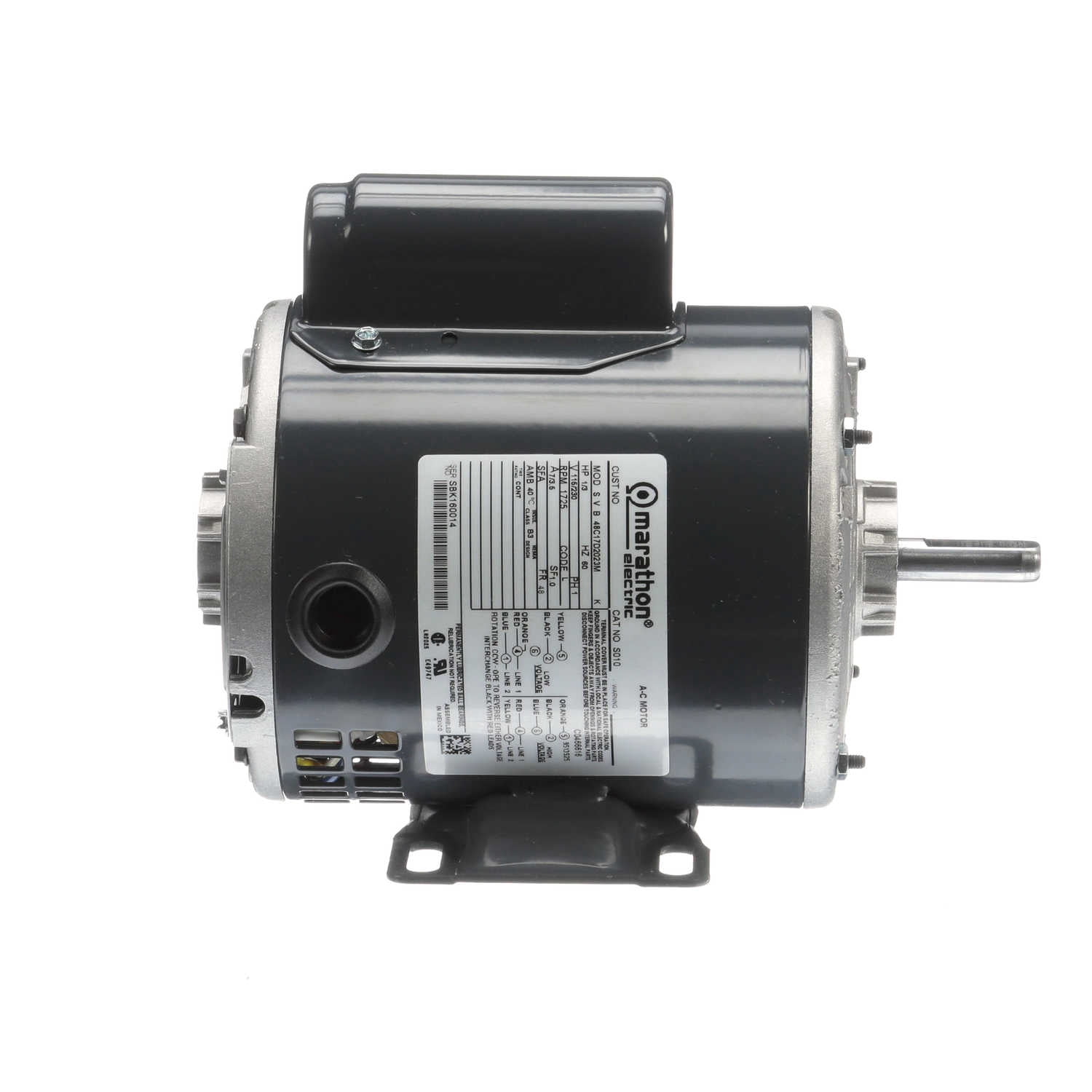

Marathon S010 Electric Motor 1/3 HP 1725 Rpm 1PH 115/230 Volt 48 048C17D2023
Product details
| Management number | 230755678 | Release Date | 2026/06/18 | List Price | $89.00 | Model Number | 230755678 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
This Marathon 48C17D2023 general purpose capacitor start motor is single phase with one-speed operation. It runs at 1/3 hp, with a maximum speed of 1800 rpm. It operates at 115/230 VAC, 7.0/3.5 Amp. The motor has a 48 frame with open drip proof (ODP) enclosure, rigid base mounting, and ball bearing system. Weight is 15 pounds.
- Brand: Leeson (formerly Marathon)
- Catalog Number: S010
- Part Number: 048C17D2023
- Output HP: 0.33 HP
- Output kW: 0.25 kW
- Voltage: 115/230 V
- Full Load Amps: 7.0/3.5 A
- Speed: 1725 RPM
- Phase: 1
- Frequency: 60 Hz
- Enclosure: Drip Proof (DP)
- Frame: 48
- Mounting: Rigid Base
- Duty: Continuous
- Service Factor: 1.0
- Insulation Class: B
- Thermal Protection: None
- Efficiency: 59.5%
- Power Factor: 58.5
- Design Code: No Design Code
- KVA Code: L
- Poles: 4
- Rotation: CW/CCW Reversible
- Electrical Type: Single Phase
- Starting Method: Capacitor Start
- Drive End Bearing: 6203
- Opposite End Bearing: 6203
- Bearing Type: Ball
- Frame Material: Rolled Steel
- Motor Orientation: Horizontal
- IP Rating: IP22
- Ambient Temperature: 40°C
- Number of Speeds: 1
- UL: Recognized
- CSA: Certified
- CE: No
- Weight: 15 lb
- Overall Length: 10.34 in
- Shaft Diameter: 0.50 in
- Shaft Length: 1.88 in
| Horsepower | 0.33 HP |
|---|---|
| Electric motor type | AC Motor |
| Electrical phase | Single Phase |
| Maximum motor speed | 1800 rpm |
| Brand | Marathon Electric |
| Has nrtl listing certification | N |
| Model | 048C17D2023 |
